PRODUCT COMPENSATORS

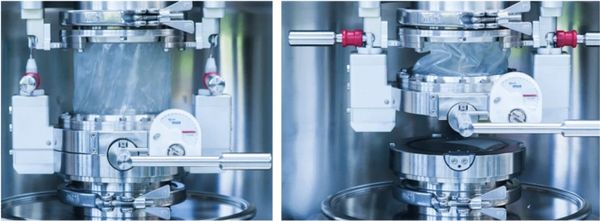

Product compensators can absorb vibrations, torsions and length changes. They are thus used with every MCV valve with own stroke to connect the MCV valve to the machine.
The compensator can be adapted to a customized length.
The flanges can be re-used after cleaning or maintenance, thus saving maintenance costs.
Features
Type
- Available as standard in diameters DN100, 150, 200, 250 and 300.
- All usual flange connections (TC, DIN32676-A/B/C, Stahlcon, DIN11864 NKS and BKS) available at short notice.
- Other customer-specific connecting flanges on request.
Material

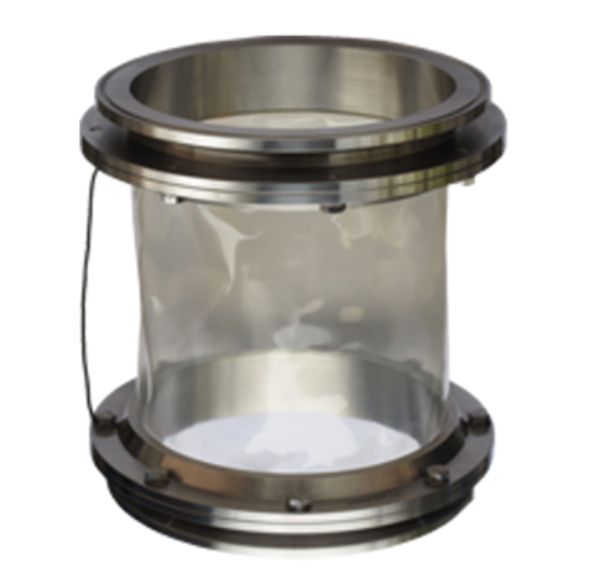

CON 730 / 780
- polyurethane, transparent
- ATEX-compliant
- long-lasting

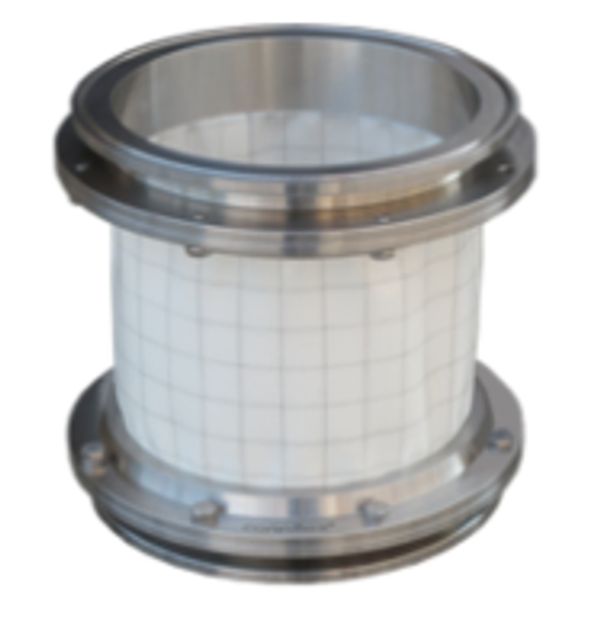

CON 701
- polyurethane-coated fabric, white
- ATEX-compliant
- particularly resistant against mechanical stress

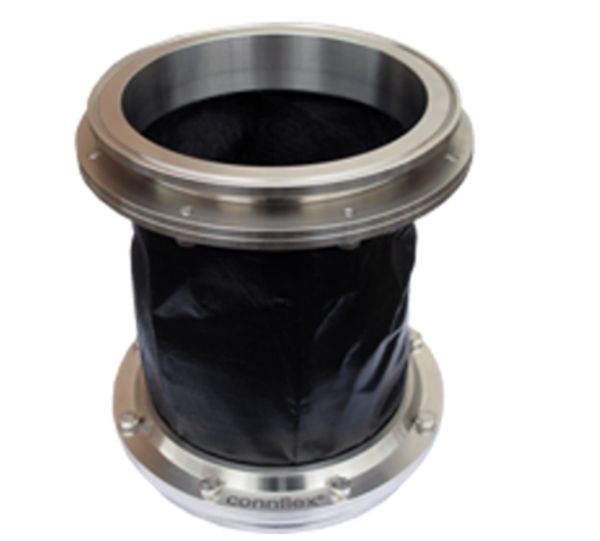

CON 750 / 760
- PTFE laminate, black,
- ATEX-compliant,
- particularly resistant against many chemicals

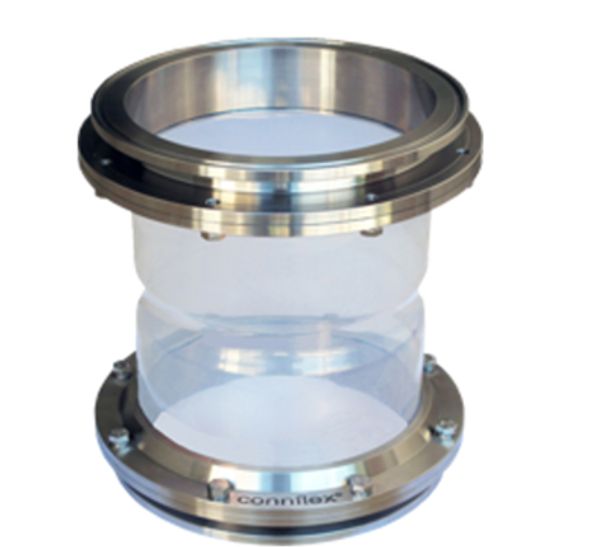

CON 710
- FEP material, transparent,
- particularly resistant against many chemicals
- best for tolerance compensation with low longitudinal changes
Benefits
- many times proven quality material
- transparent variant available for best sight on the process
- made of polyurethane, fabric-reinforced polyurethane or PTFE-coated, all FDA-certified
- also for ATEX areas
- customized length
- the flanges are re-used when performing maintenance, maintenance is only required for the plastic tube
