HOPPERS FOR MÜLLER DRUMS
There are suitable hoppers for every Müller stainless steel drum, to allow safe, dust-free and dosed emptying of the content. The hoppers can be symmetrical 60° or 90° cones or have an asymmetrical shape.

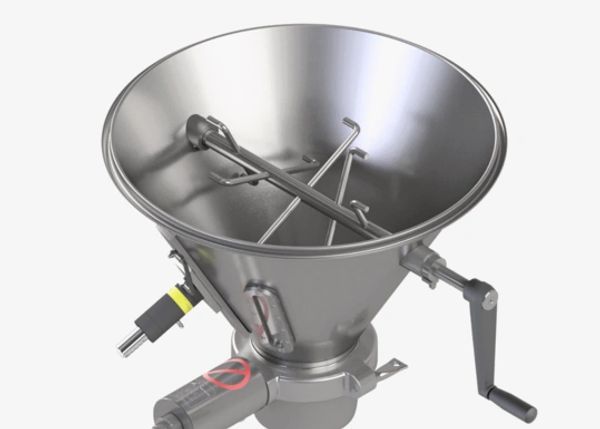

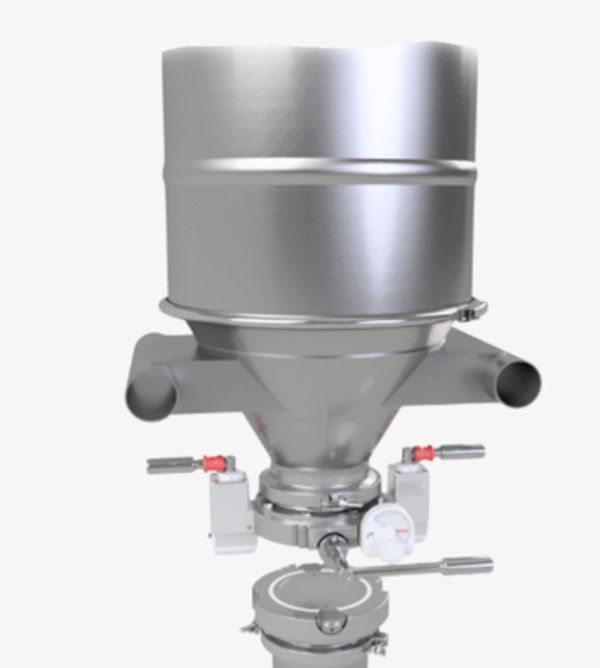

Simply position the hopper manually on the open drum and close the clamping ring. That's it! The patented MC valve is available in various sizes from NW 100 to 300. When mounted on the outlet, it ensures the controlled emptying of the drum content into other containers or machines. Various discharge aids reaching from the hook up to the pneumatic vibrator ensure trouble-free emptying of sluggishly flowing products. And the great thing: the hopper is only put in place when it is needed. This saves place and costs.
features
Type
- Stainless steel hopper Type 60

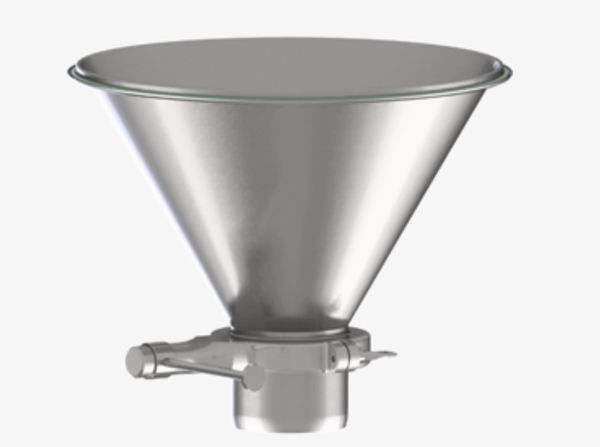

This symmetrical stainless steel hopper has a 60° cone. It is available for all Müller stainless steel drums with valves in various nominal sizes.
All weld seams are butt-welded, smoothed and polished. - Stainless steel hopper Type 90
This symmetrical stainless steel hopper has a 90° cone. It is available for all Müller stainless steel drums with valves in various nominal sizes.
All weld seams are butt-welded, smoothed and polished. - Stainless steel hopper Type AS
This stainless steel hopper has an asymmetrical cone. It is available for all Müller stainless steel drums with valves in various nominal sizes.
All weld seams are butt-welded, smoothed and polished.
Material
- Materials stainless steel (1.4541, 1.4301, 1.4404, Hastelloy and special materials)
- Surface quality for surfaces in contact with the product Ra ≤ 0,6 μm
Special
- suitable for every Müller drum diameter
