mobilo

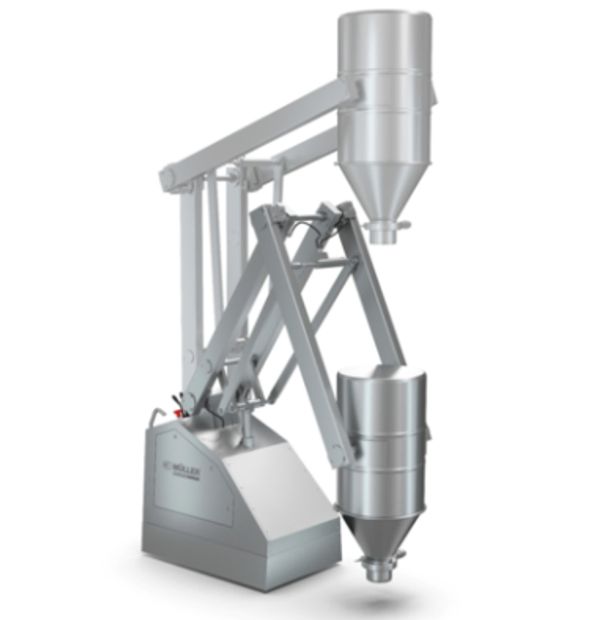

Mobile handling device for transporting and lifting drums. Its compact construction combining low overall height and maximum lift allows gripping, lifting, inverting and lowering drums reliably within smallest space. The hand levers allow continuous operation of the hydraulically lifted support arms. The unobstructed view of the load, without disturbing central mast, significantly simplifies the feeding of the machines. When docking, the drum / hopper combination is placed in a gentle and self-centering way in the fixture

The internal hydraulic motor drives all movements: lifting and lowering, gripping and inverting. When lifting and lowering, the drum position always remains the same, thus ensuring accurate positioning.

features

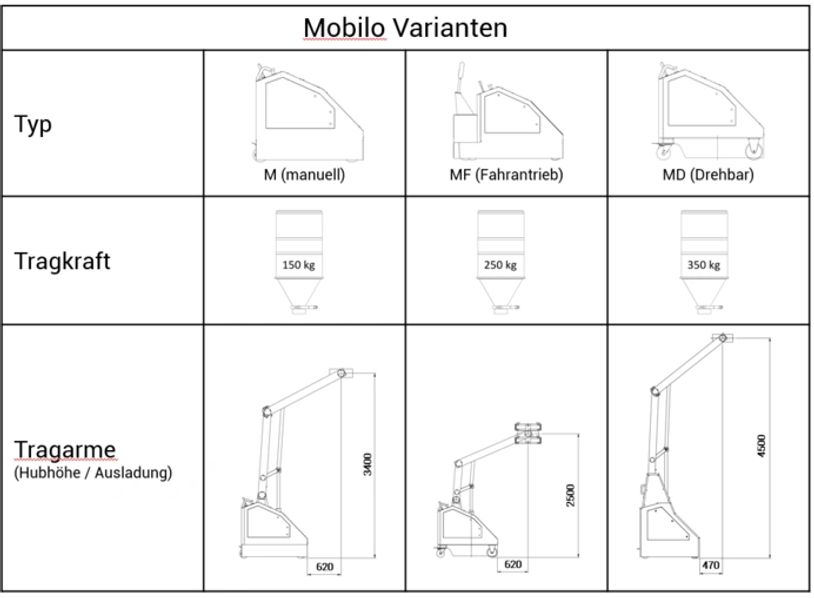

Type

load capacity up to 350 kg
Electrohydraulic drives:
- three-phase current (cable)
- battery
with additional rotary axis
with propulsion drive
version compliant with the ATEX directives possible

Usage

mobile feeding in smallest space of:
- Tablet presses
- Capsule filling machines
- Blister machines
- Screening machines
filling and transferring goods from and to various containers

Benefits

stable lifting and lowering in vertical axis position
precise positioning at the target point thanks to unobstructed operator view
different construction and drive forms, and gripper systems for a wide range of requirements

Special features

specially low construction heights for reduced vertical clearances
flexible rotation of the top of the device on the chassis by max. 240°
continuous drive speeds

Attachments

Our Mobilos can also be equipped with the following accessories:

Intermediate lifting limit
Operating hours counter
Polyurethane (PU) castors
Extra long coiled cable
External socket (with retractable cable)
Pneumatic port for actuators, vibrator or shut-off valves
