Twist and Click
click pack
This UN certified pail lowers the cost of and reduces the space needed for storing and shipping empty packaging. It protects your valuable products from moisture, from contamination, and against tampering.
features

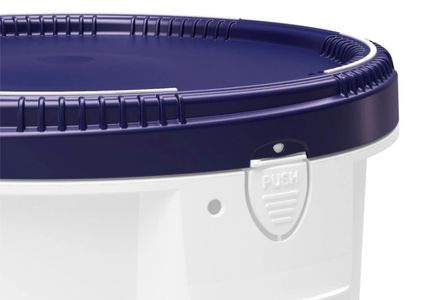

Click = lock
To close Click Pack, give the lid a quarter turn until it clicks and locks. To open, press the locking button and turn.

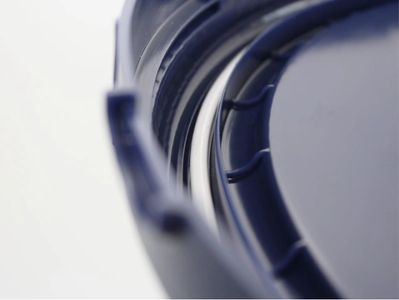

Keep moisture under control
The integrated gasket of a Click Pack lid offers a barrier against moisture ingress. The moisture vapor transmission rate has been determined using an ASTM standard.
Lower logistics costs
Pails with tapered walls can be nested and increase efficiency in transportation and warehousing operations, leading to lower logistics costs.

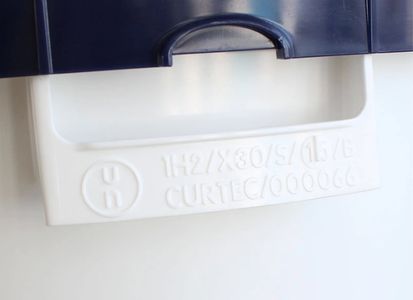

UN certified packaging
Are you shipping dangerous solids? Make it safe with UN certified pails.
Carry on
In order to make pouring and carrying more easy, a plastic handle is optionally available on all capacities.
Create more comfort

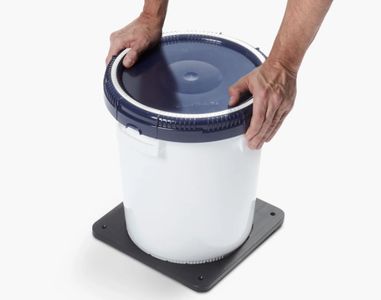

Closing a Click Pack pail according to the manual is easy enough by hand. Closing and opening however can be made even easier and more ergonomic with a Lid Locker. This simple tool allows you to create more torque with less effort.
specifications
6 Liter Click Pack 4406
6 Liter Click Pack 4406
6 Liter Click Pack 4406
- Product code - 4406
- Capacity - 6 liters / 1.6 US gallons
- Diameter opening - 211 mm
- Diameter drum - 240 mm
- Total height - 215 mm
- Material - HDPE
- UN marking - 1H2/X6/Y9/Z14/S/--/NL/TCPI-CURTEC-130556
- Pallet quantity - 450 pcs
- Handles option
- With Handgrips
10 Liter Click Pack 4410
6 Liter Click Pack 4406
6 Liter Click Pack 4406
- Product code - 4410
- Capacity - 10 liters / 2.6 US gallons
- Diameter opening - 288 mm
- Diameter drum - 318 mm
- Total height - 210 mm
- Material - HDPE
- UN marking - 1H2/X8/Y12/Z18/S/--/NL/TCPI-CURTEC 3278
- Pallet quantity - 300 pcs
- Handles option
- With Handgrips
15 Liter Click Pack 4415
6 Liter Click Pack 4406
15 Liter Click Pack 4415
- Product code - 4415
- Capacity - 15 liters / 4.0 US gallons
- Diameter opening - 288 mm
- Diameter drum - 318 mm
- Total height - 278 mm
- Material - HDPE
- UN marking - 1H2/X14/Y21/Z30/S/--/NL/CURTEC 3278
- Pallet quantity - 200 pcs
- Handles option
- With Handgrips
15 Liter Click Pack 4515
15 Liter Click Pack 4515
15 Liter Click Pack 4415
- Product code - 4515
- Capacity - 15 liters / 4.0 US gallons
- Diameter opening - 295 mm
- Diameter drum - 333 mm
- Total height - 297 mm
- Material - HDPE
- UN marking - 1H2/X30/S/--/B/CURTEC 000066 X30=Y45=Z67
- Pallet quantity - 180 pcs
- Handles option
- With Handgrips
- Conical - Storing empties takes up less space
20 Liter Click Pack 4520
15 Liter Click Pack 4515
20 Liter Click Pack 4520
- Product code - 4520
- Capacity - 20 liters / 5.3 US gallons
- Diameter opening - 295 mm
- Diameter drum - 333 mm
- Total height - 377 mm
- Material - HDPE
- UN marking - 1H2/X30/S/--/B/CURTEC 000066 X30=Y45=Z67
- Pallet quantity - 180 pcs
- Handles option
- With Handgrips
20 Liter Click Pack 4420
15 Liter Click Pack 4515
20 Liter Click Pack 4520
- Product code - 4420
- Capacity - 20 liters / 5.3 US gallons
- Diameter opening - 288 mm
- Diameter drum - 318 mm
- Total height - 361 mm
- Material - HDPE
- UN marking - 1H2/X17.5/Y26/Z39/S/13-/NL/CURTEC 3278
- Pallet quantity - 200 pcs
- Handles option
- With Handgrips
- Conical - Storing empties takes up less space
25 Liter Click Pack 4525
Sealing pin 4404 for Click Pack 4406 - 4420
Sealing pin 4404 for Click Pack 4406 - 4420
- Product code - 4525
- Capacity - 25 liters / 6.6 US gallons
- Diameter opening - 295 mm
- Diameter drum - 333 mm
- Total height - 457 mm
- Material - HDPE
- UN marking - 1H2/X30/S/--/B/CURTEC 000066 X30=Y45=Z67
- Pallet quantity - 180 pcs
- Handles option
- With Handgrips
Sealing pin 4404 for Click Pack 4406 - 4420
Sealing pin 4404 for Click Pack 4406 - 4420
Sealing pin 4404 for Click Pack 4406 - 4420
Plastic push pin for tamper proof sealing.This pin makes tampering with valuable content visible.
- Product code - 4404
- Material - PS
- Box quantity - 800 pcs
- Sequential numbers and/or logo (optional)
Sealing pin 4404 for Click Pack 4515 - 4525
Sealing pin 4404 for Click Pack 4406 - 4420
228 mm Sealing strip for Click Pack 4406-4420
Plastic push pin for tamper proof sealing.This pin makes tampering with valuable content visible.
- Product code - 4504
- Material - PS
- Box quantity - 900 pcs
- Sequential numbers and/or logo (optional)
228 mm Sealing strip for Click Pack 4406-4420
228 mm Sealing strip for Click Pack 4406-4420
228 mm Sealing strip for Click Pack 4406-4420
Plastic push pin for tamper proof sealing.This pin makes tampering with valuable content visible.
- Product code - 7800
- Length - 228 mm
- Material - PS
- Box quantity - 1000 pcs
- Sequential numbers and/or logo (optional)
