Butterfly Valve MC

GMP-compliant shut-off valve for bulk goods, especially designed for applications in the pharmaceutical industry, which requires frequent product changes.

Operation is simple, reliable and safe. The MC valve can be mounted in a few steps. Whether with hand lever, pneumatic actuator or electric positioner: this patented shut-off valve allows handling all interfaces.

Thanks to its detachable hinge, the MC valve can be disassembled without tools, it can be optimally cleaned and ensures short assembly times.

features

Type

Nominal diameters 100, 150, 200, 250 and 300
ATEX-compliant version available

Available actuator units

manual
manual with extended lever
pneumatic
with end position monitoring
with positioner

Materials

product-contacted parts in stainless steel, Ra < 0,6

Seals with FDA approval

Silicone
EPDM
PTFE
Viton

Usage

Can be used in

Pharmaceutics
Chemistry
Food processing

for

Product piping
Containers
Mixing containers
Silos
Filling
Drum funnels
Machine inlet / Machine outlet

Benefits

particularly ergonomic assembly and disassembly, without tools
optionally available with dragée disk for gentle tablet filling

Special Features

Optionally with dragée disk

silicone-coated valve disk with flexible sealing lip
for damage-free handling of tablets, capsules or dragées

MRF valve

Whenever fast maintenance and cleaning cycles are not the crucial factors, the butterfly valve type MRF comes into action. With the same technical performance, the MRF butterfly valve offers an economical alternative due to its particularly cost-optimised design.
Can be locked in any position.
Available in DN100, 150, 200 and 250.

Rotary valve MCR

In the configuration of a rotary valve, the rotary version of the MC valve can handle simple dosing operations. Rotating movements of the rotary disc result in a continuous and uniform product flow.
Suitable for the uniform feeding of machines that do not allow a vertical product column.
Available in DN100, 150, 200 and 250.

BUTTERFLY VALVE MC

features

Type

Materials

Usage

Benefits

Special Features

Optionally with dragée disk

MRF valve

Rotary valve MCR

Rotary valve MCR

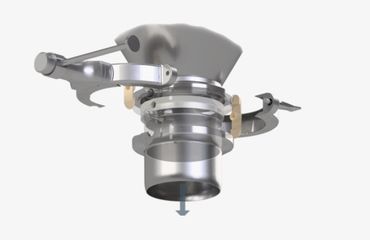

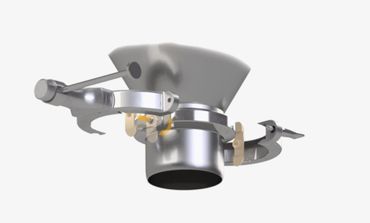

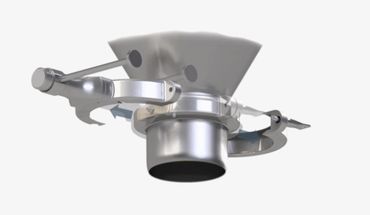

Particularly ergonomic assembly and disassembly in a few steps. No tools required for disassembly.
